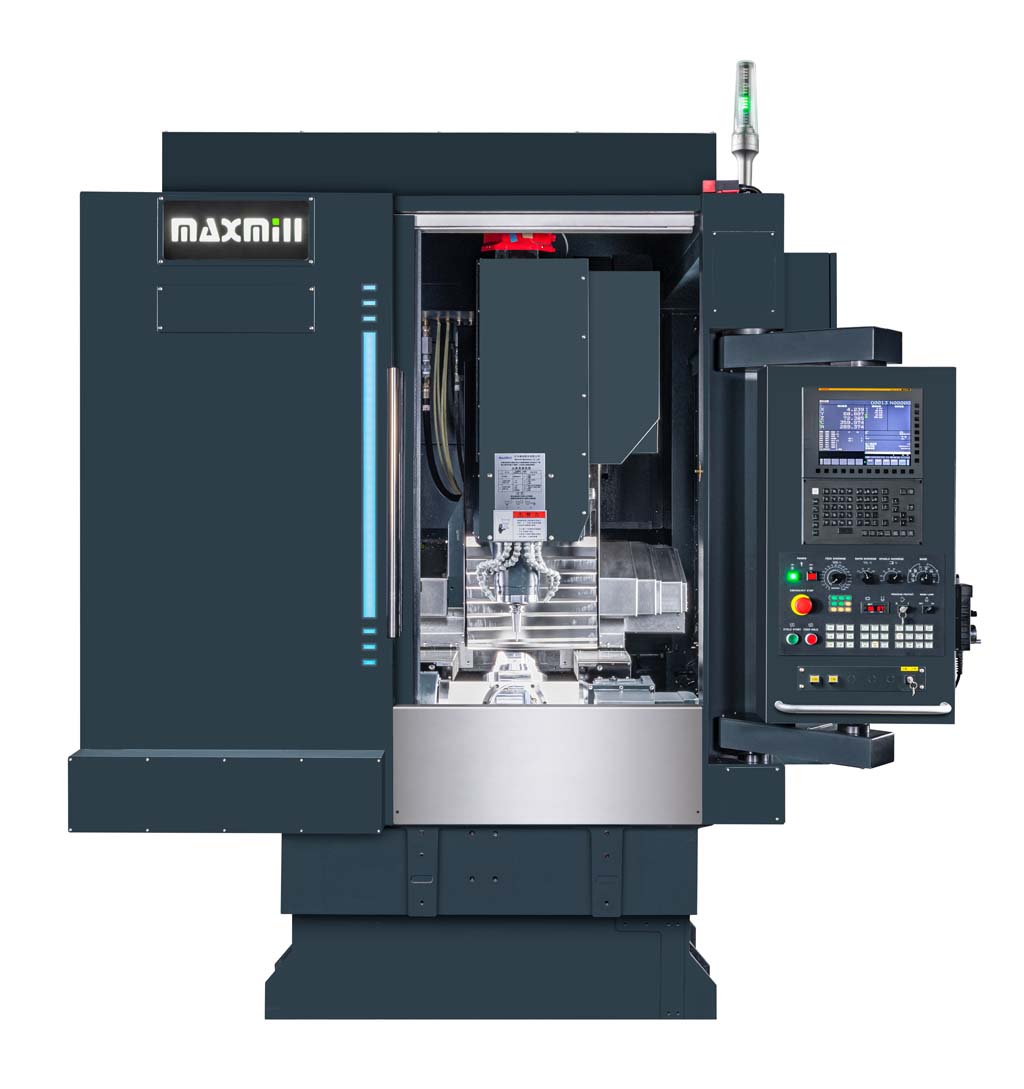

MQ-17

Innovative Concept: One machine equals four, redefining traditional machining methods.
Superior Efficiency: Loads four workpieces at once, enabling simultaneous five-sided machining.
Full Automation: Integrates with robotic arms for complete automation.
Optimized Space Utilization: Compact design reduces labor costs and increases productivity.

Specification

TRAVEL	UNIT	X x Y x Z
TRAVEL	mm	200＋80x 400 x 330
Guide type	–	linear guide ways
Driven type	–	Ballscrew＋cooling
Rapid feed rate(Max. speed)	m/min	60/ 60 /60
Cutting feed rate	m/min	15 /15 /15
A axis	Deg	0°~370°
C axis	Deg	∞
SPINDLE		S1
Speed	rpm	12000
Driven type	–	Direct Drive
Spindle taper	–	BT30
WORK RANGLE		WORKTABLE
Table Diameter	㎜	140
Max. workpiece diameter	㎜	170
Max. workpiece height	㎜	170
Distance from spindle nose to table	㎜	30
Distance from spindle nose to tilting	㎜	175
Distance from table to tilting axis center	㎜	145
Distance from tilting axis center	㎜	100~-290
Distance from table to floor	㎜	1015
Max. loading capacity (Uniform load)	㎏	10kg*4=40kg
TOOL MAGAZINE		STD	OPT	OPT
Tool storage capacity	pcs	30	40	60
ATC type	type	BT30	BT30	BT30
Max. tool length	㎜	160	160	160
Max. tool diameter	㎜	80	80	80
Max. tool weight	㎏	3	3	3
DIMENSION
Power consumption	kva	15
Floor space (W x L x H)	mm	2165 x 3356 x 2654
Container loading capacity	kg	2700

MQ-17
